| Outer dimensions | L2120*W900*H340-710mm(±10mm) |
| Sleeping surface | L1940*W830mm(±10mm) |

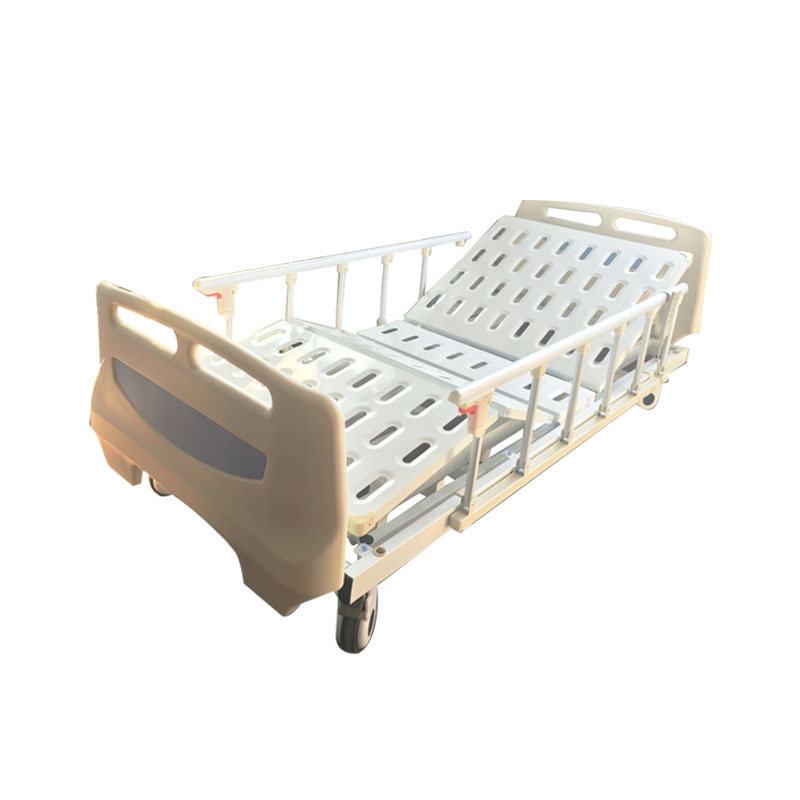

• 4-section sleeping surface molded by cold-rolled steel sheet
• Detachable deluxe ABS plastic head/foot panels
• Collapsible 6-bar aluminum alloy siderails
• High-quality medical motor system, 3 motors, 1 control box, 1 handset
• With ultra-low position design as low as 340mm
• ∅5" medical castors with brakes
• 4 pcs urine bag hooks
• Height adjustable IV pole, foam mattress, over-bed table, oddment shelf, manual/ electronic CPR, etc.
| Backrest lifting angle | 0 ~ 70°（±5°） |
| Legrest lifting angle | 0 ~ 35°（±5°） |
| Height range | 340-710mm(±10mm) |
| Weight capacity | 170kg |
| Power supply | 220V/110V, 50HZ/ 60Hz |
| Maximum input | 1.6A, 450VA |
ISO 9001, ISO 13485, CE, FDA
| G.W. | 103kg |
| N.W. | 98kg |
• One set to one export Ctn
• Ctn Size: 205*98*34 cm
• 2 year on electronics and motors
• 5 years on frame and structural components
