| Outer Dimensions | L2120*W940*H450-730mm (±10mm) |
| Mattress platform | L1940*W830 mm (±10mm) |

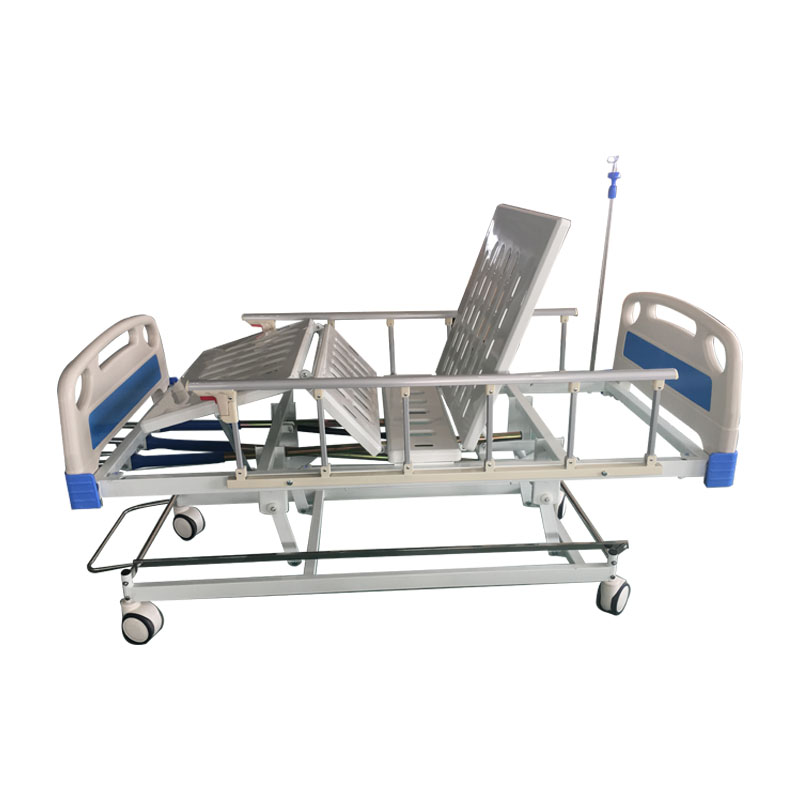

• 4-section sleeping surface molded by cold-rolled steel sheet ABS head/foot boards
• Removable ABS plastic head and foot ends with color panels
• Lockable and fold-away 6-bar aluminum alloy side rails
• IV pole sockets located at four corners
• Height is adjustable by gas spring
• Four castors Ø5" with central lock system
• 3 pcs S/S cranks with pp plastic handles
• 4 pcs urine bag hooks
• Height adjustable IV pole, foam mattress, over-bed table, oddment shelf, manual/ electronic CPR, etc.
| Backrest | 0 ~ 70° (±5°) |
| Legrest | 0 ~ 35° (±5°) |
| Height | 450-730mm |
| Weight capacity | 170kg |
ISO 9001, ISO 13485, CE, FDA
| G.W. | 100kg |
| N.W. | 92kg |
• One set to two export Carton
• Carton Size：L208*W96*H47cm
• 5 years on frame and structural components
