| Overall Size | L2040*W1030*H1105-1355mm(±10mm) |
| Sleeping surface | L1940*W830mm |

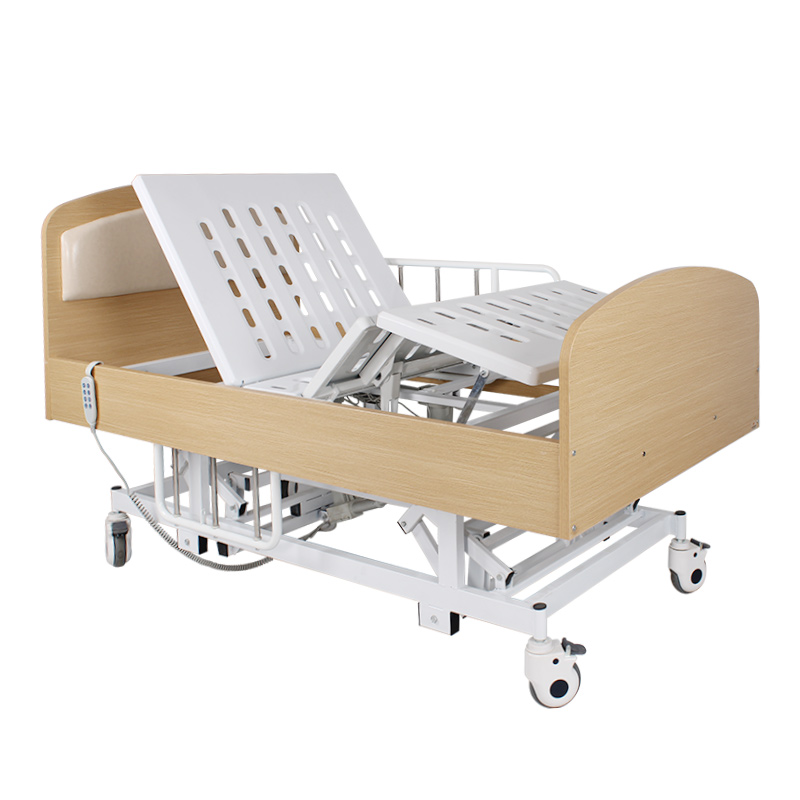

• 4-section sleeping surface molded by cold-rolled steel sheet

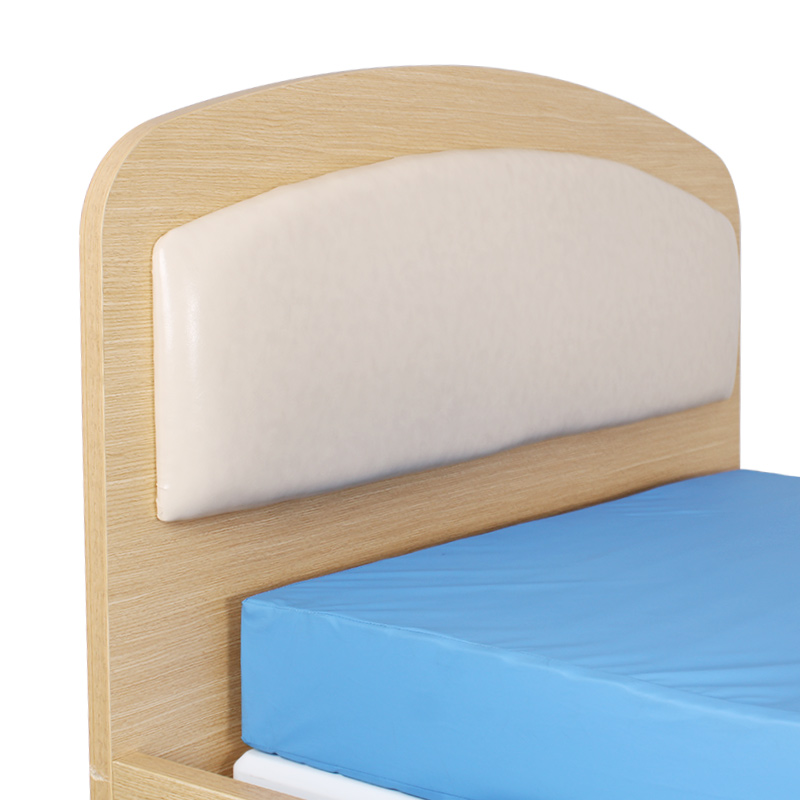

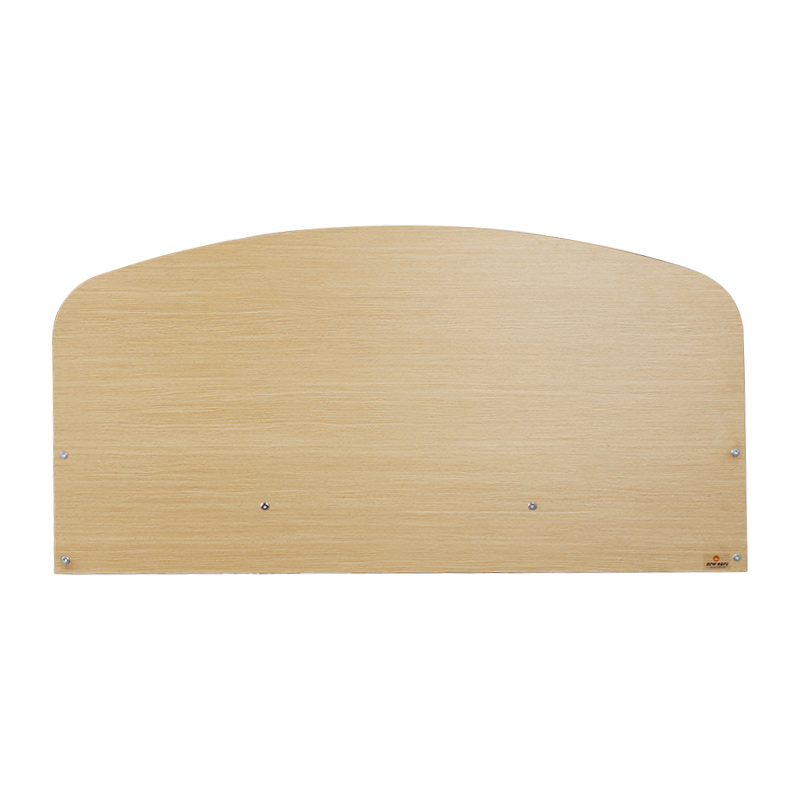

• Laminated wooden head/foot panels with soft head
• Vertical lift metal handrail, easy to operate

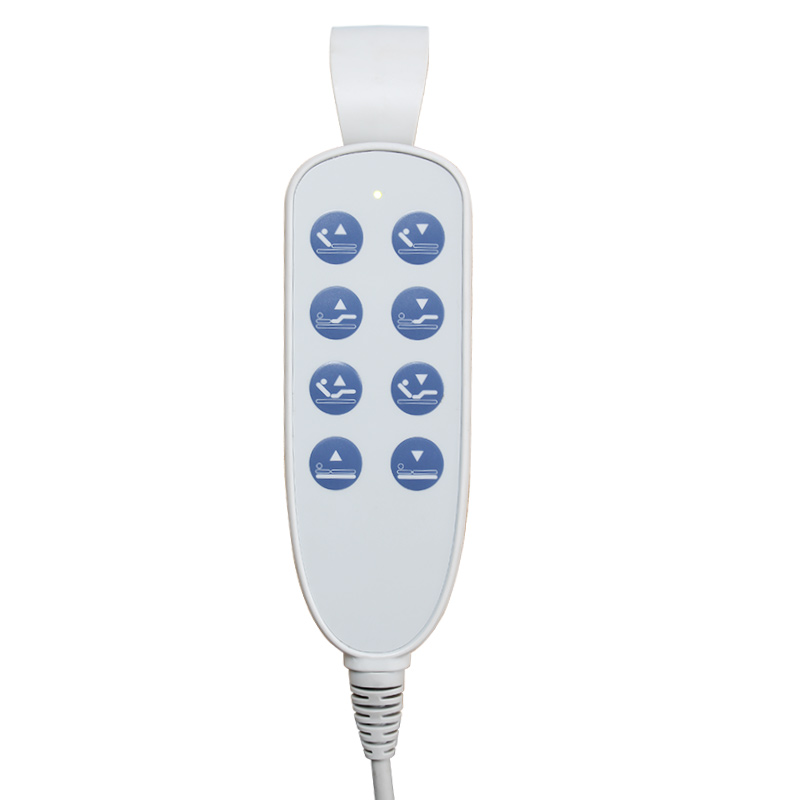

• Newhope medical motor system, 3 motors, 1 control box, 1 handset

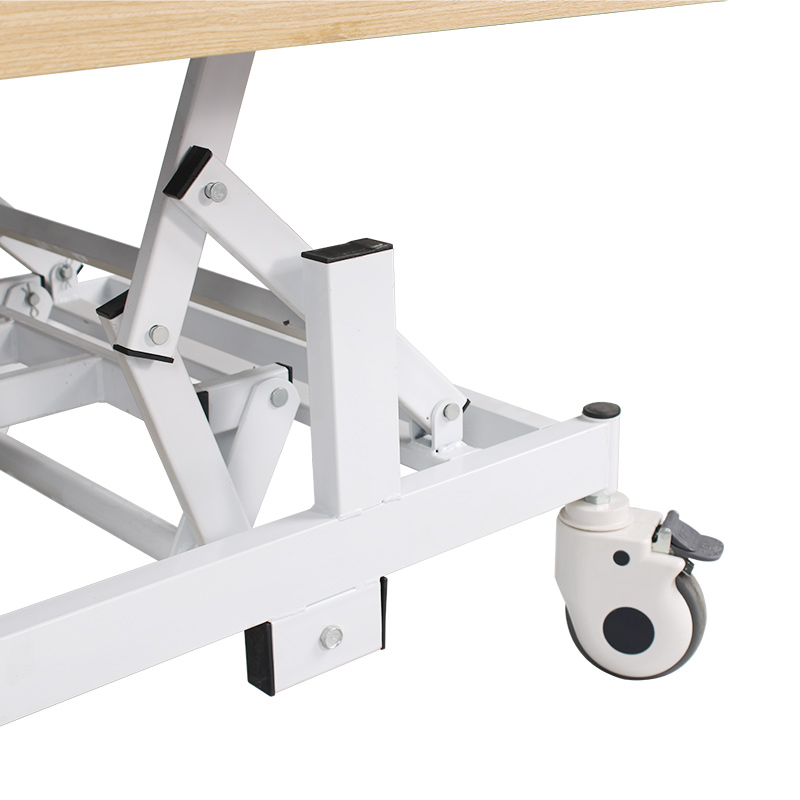

• 5“ medical castors with brakes
• 4 pcs urine bag hooks, 1 IV pole
• Matress, Overbed table, oddment shelf, etc.
| Backrest lifting angle | 0 ~ 70°（±5°） |
| Legrest lifting angle | 0 ~ 35°（±5°） |
| Height range | 350-600mm |
| Weight capacity | 180kg |
| Power supply | 220V/110V, 50HZ/ 60Hz |
| Maximum input | 1.6A, 450VA |
ISO 9001, ISO 13485, CE, FDA
| G.W. | 100kg |
| N.W. | 93kg |
• One set to one export Ctn
• Ctn Size: 206*120*36cm
• 2 year on electronics and motors
• 5 years on frame and structural components
