| Outer Dimensions | L2120*W900*H470-710mm(±10mm) |
| Mattress platform | L1940*W830mm(±10mm) |
• 4-section sleeping surface molded by cold-rolled steel sheet
• Removable ABS/Polypropylene plastic head and foot ends with color panels
• Lockable and fold-away 6-bar aluminum alloy side rails
• IV pole sockets located at four corners
• Protective plastic corner bumpers

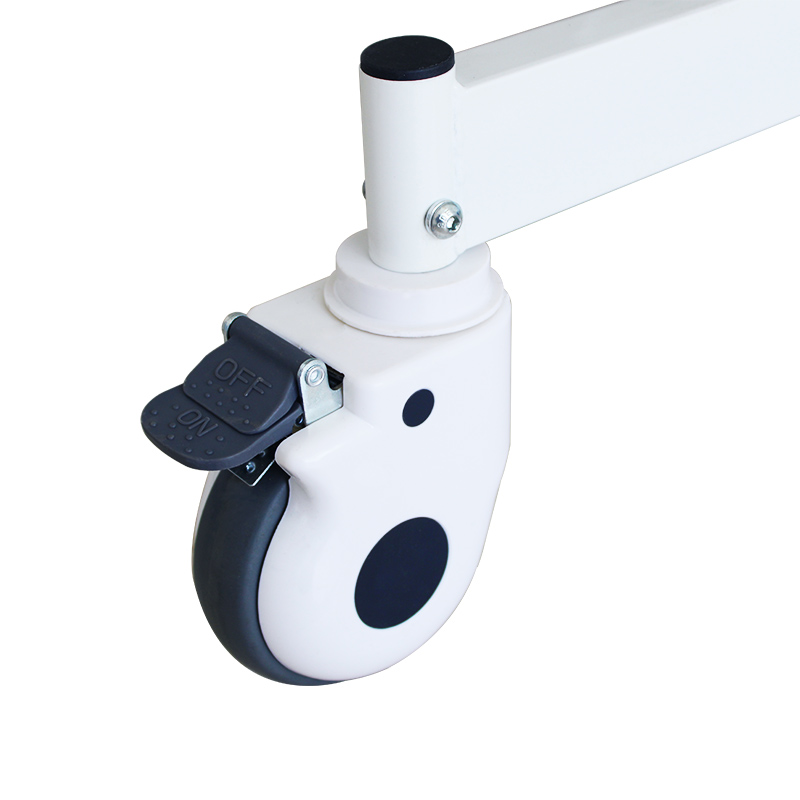

• Four lockable castors Ø5“

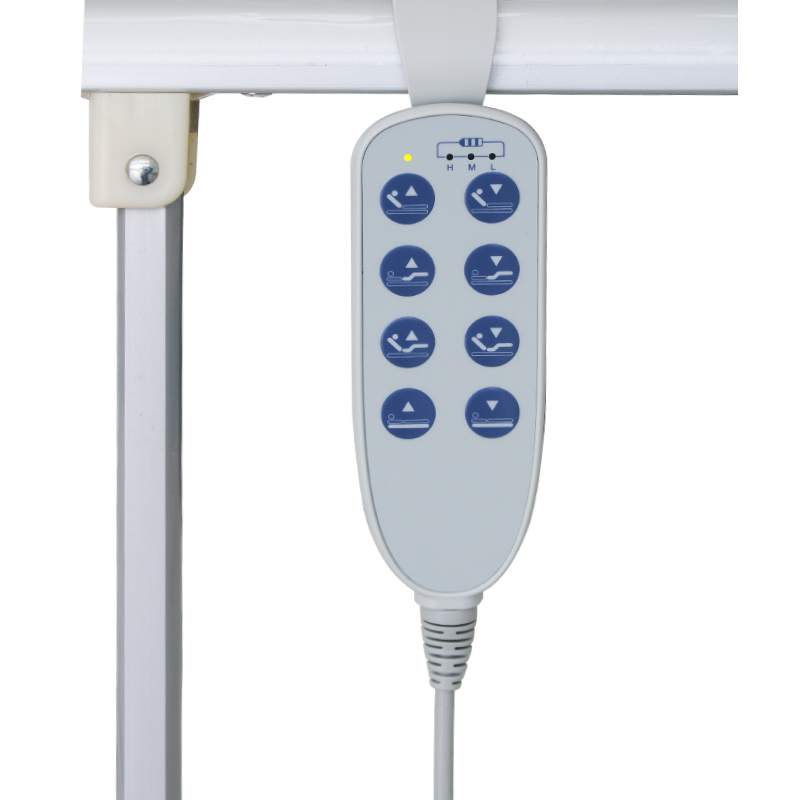

• High-quality medical motor system with 3 motors, 1 control box and 1 handset
• Protective plastic corner bumpers
• WIth battery function
• Height adjustable IV pole, monkey bar, urine bag hooks, foam mattress, over-bed table, oddment shelf, manual/ electronic CPR, etc.
| Backrest | 0 ~ 80° (±5°) |
| Legrest | 0 ~ 45° (±5°) |
| Height | 470-710mm (±10mm) |
| Weight capacity | 180kg |
| Power supply | 220V/110V, 50HZ/ 60Hz |
| Maximum input | 1.6A, 450VA |
ISO 9001, ISO 13485, CE, FDA
| G.W. | 102kg |
| N.W. | 98.5kg |
• One set to one export Carton
• Carton Size: L213*W98*H33
• 1 year on electronics and motors
• 3 years on frame and structural components
